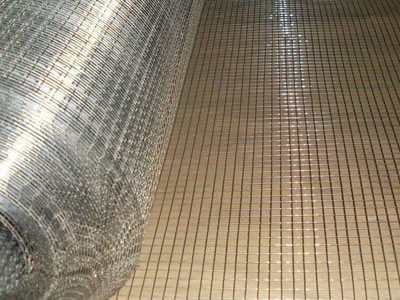

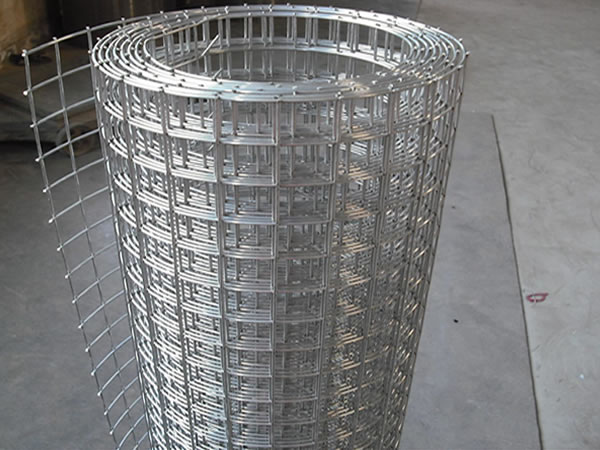

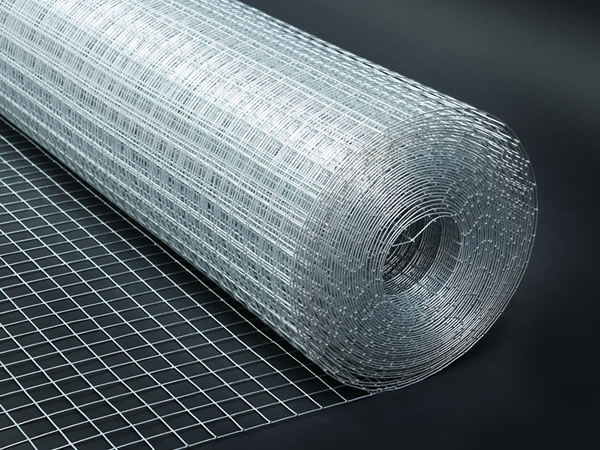

Welded Wire Mesh
In construction in the form of reinforcement brick mesh, welded bar gratings or wire mesh sandwich construction. A wire mesh sandwich construction which comprises an array of line wires, an array of cross wires overlying said array of line wires and a barrier material disposed between the array of line wires and the array of cross welded wires. The array of line wires is joined to said array of cross wires at the points of intersection and through the barrier material, thus securing the barrier material between the array of line wires and the array of cross wires.
Welded Wire Mesh serves as guards in buildings and factories, as animal enclosure and wire mesh fences in agriculture; welded wire mesh also serves in horticulture industry as guards for trees and plants.
We produce welded wire mesh with following specifications. Custom orders with different width and length is also welcome.
| Specification List of Welded Wire Mesh: | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |

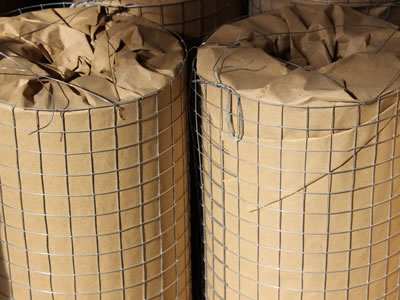

| Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. | ||
| Galvanized Fencing Mesh: | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 2" x 3" | 50mm x 75mm | 2.0mm,2.5mm,1.65mm |
| 3" x 3" | 75mm x 756mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
| 2" x 4" | 50mm x 100mm | 2.11mm,2.5mm |
| 4" x 4" | 100mm x 100mm | 2.0mm,2.5mm |
| Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. | ||
| PVC Coated Welded Mesh: | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21 |
| 3/4" x 3/4" | 19mm x 19mm | 16,17,18,19,20,21 |
| 1" x 1" | 25.4mm x 25.4mm | 15,16,17,18,19,20 |
| Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.2m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. | ||
