Electro Galvanized Wire
Raw Material: Galvanised mild steel wire
Surface Treatment:Electrogalvanised
Application:

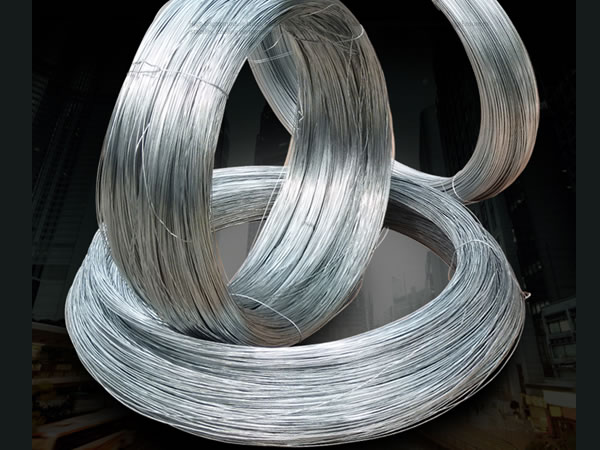

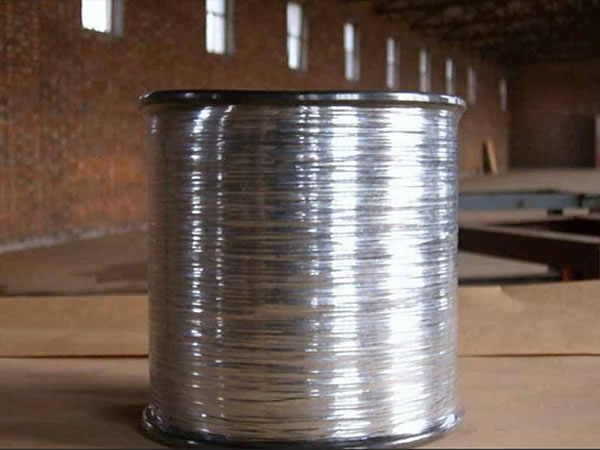

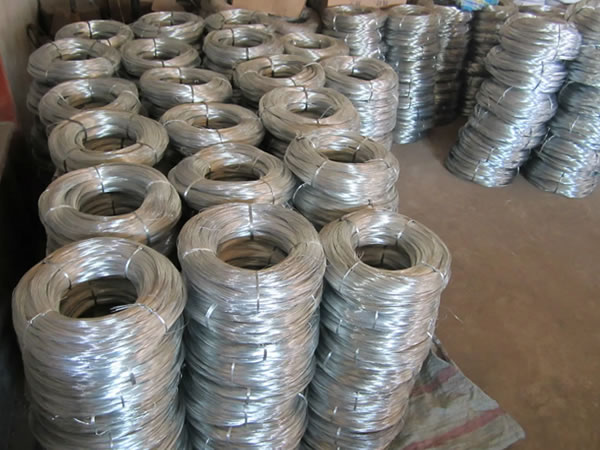

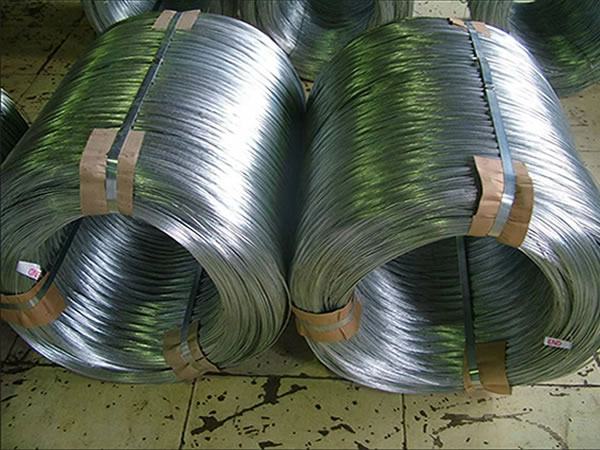

Electro galvanized wire is supplied in forms of coil wire, spool wire, cut wire or U type wire.
Common gauge range: BWG6 - 22 - 34.
The zinc coating applied: mostly 10 to 25g/m2. Commonly 8-12g/m2 zinc coating for 0.8mm iron wire, 15-25g/m2 for 1.2mm to 1.6mm iron wire.
Wire shapes: Round, flat, oval, crimped.
Tensile strength of electro galvanized steel wire: Mostly 40-85kg/mm2. 300-500mpa for low carbon steel wire, 900-1870mpa for high carbon steel wire.
Materials: Carbon steel wire, mild steel wire, iron wire
Finishes: Electro galvanizing, annealed galv., electro galv. then pvc coating.
Iron wire galvanized then plastic coated offers better corrosion resistance, longer service life and color options.
Steel wire electric galvanized is mainly used in producing wire fences, mesh netting and various industrial wire products.
SPECIFICATIONS OF ELECTRO GALVANIZED IRON WIRE
| COMMODITY: | RE-DRAWN EGI WIRE DIA 0.54mm + 0.01 / - 0.00 ( 0.54 ~ 0.55mm ) |
| WIRE DIA BEFORE REDRAWING | 0.90mm |
| SILICON* | < 0.04 |
| CARBON* | 0.1 – 0.12 |
| SULPHUR* | < 0.045 |
| MANGANESE* | 0.30 -0.50 |
| PHOSPHORUS* | < 0.04 |
| ZINC COATING | 10 – 15g/m2 |
| ULTIMATE TENSILE STRENGTH (UTS) | 60 – 70kg/m2 |
| INSIDE COIL DIAMETER | 10 Inches |
| PACKING | Net weight: 25kg / coils packed with PE Film then PP woven cloth (PE film + PP woven cloth + tie wire should not be included in the net weight). TIE WIRE: Each Coil should be tied with GI wire not thicker than 0.90mm. |
