Welded Wire Mesh Panel is made of superior quality welded mesh, electro galvanized, hot-dipped galvanized or plastic coated. It is also supplied in plain steel welded wire mesh without galvanizing to save cost.

Welded wire mesh panels offer flat even surface, firm structure and excellent anti-corrosion resistance. Welded wire mesh panels be used extensively in building, food, agriculture and so on.

Welded Mesh Panels Types:

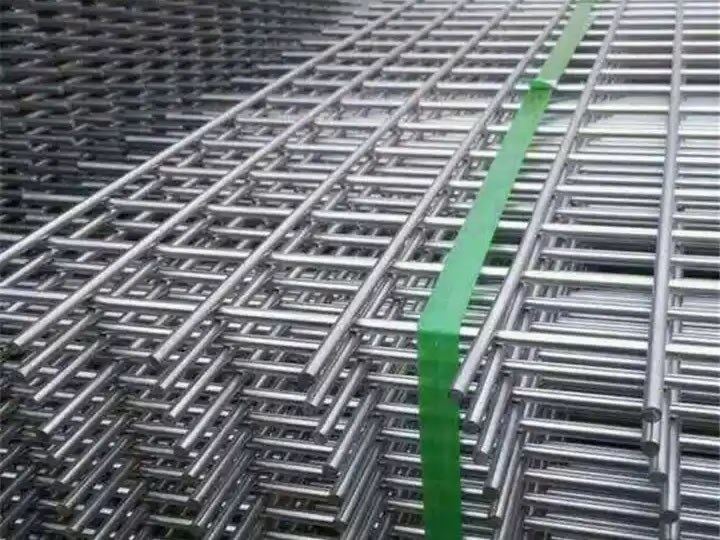

Welded Stainless Steel Wire Mesh Panels

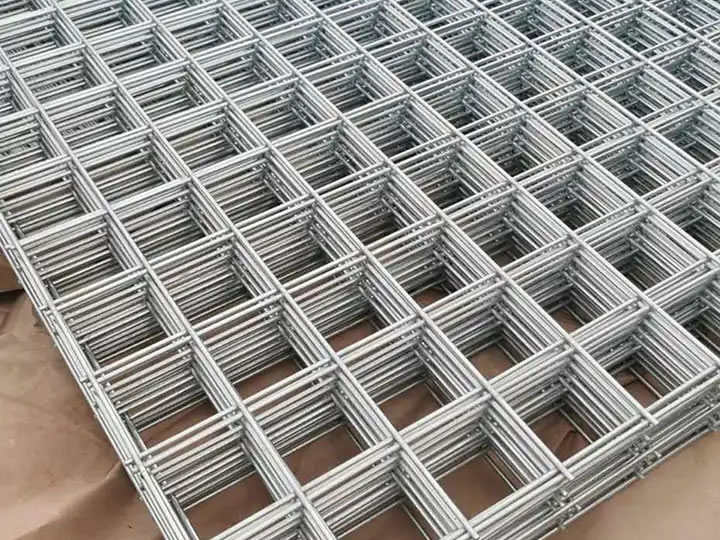

Galvanized Welded Mesh Panels
Hot-dip Zinc Plating Welded Mesh Panels

Standard Specifications:
Welded Mesh Panel, 1.5mm Wire Diameter, 1/2" X 1/2" Mesh Opening;
Welded Mesh Panel, 2mm Wire Diameter, 1" X 1" Mesh Opening;
Welded Mesh Panel, 3mm Wire Diameter, 1" X 1" Mesh Opening;
Welded Mesh Panel, 3mm Wire Diameter, 1-1/4" X 1-1/4" Mesh Opening;
Welded Mesh Panel, 4mm Wire Diameter, 1-1/2" X 1-1/2" Mesh Opening;
Welded Mesh Panel, 2mm Wire Diameter, 2" X 2" Mesh Opening;
Welded Mesh Panel, 3mm Wire Diameter, 2" X 2" Mesh Opening;
Welded Mesh Panel, 4mm Wire Diameter, 2" X 2" Mesh Opening;
Welded Mesh Panel, 5mm Wire Diameter, 2" X 2" Mesh Opening;
Welded Mesh Panel, 6mm Wire Diameter, 4" X 2" Mesh Opening;
Welded Mesh Panel, 6mm Wire Diameter, 4" X 4" Mesh Opening;
Special sizes can be custom made.

Welded Mesh Panels can be made from the following welded wire mesh materials.
1. Electro Galvanized Welded Wire Mesh
2. Panels of Steel Welded Gratings

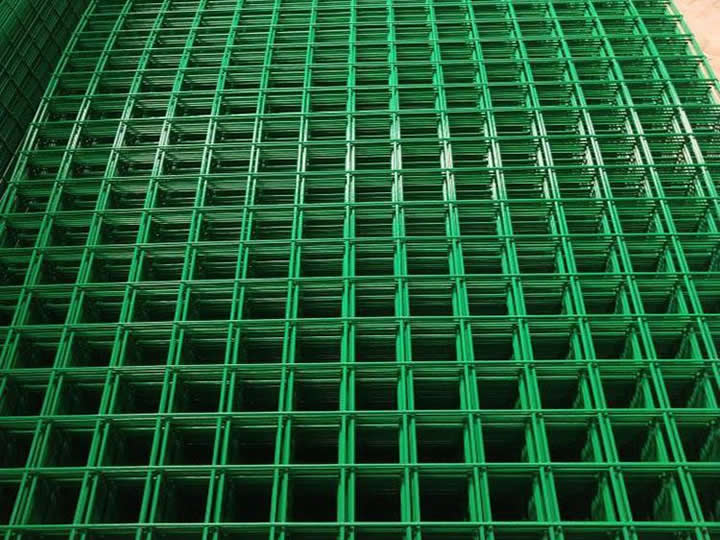

3. Plastic Coated Welded Wire Mesh

We offer heavy type welded wire mesh panels including steel bar welded wire mesh.
Wire diameter for welded steel bar panel ranges from 5mm to 16mm.
Welded bar panels opening: 75mm to 300mm.
Welded panel length: 100cm to 1400cm.
Panel width: 100cm to 300cm.

Applications: Welded steel bar grating panels are widely used in construction reinforcement, the ground for the tunnels, bridges, highway, airport and wharf, also in construction of wall body.

Welded mesh is utilized as guards in buildings and factories, as animal enclosure and fence in agriculture; it is also used in horticulture industry as tree guards, plant protection.Specification of Welded Bar Steel Gratings:
