Welding Rod
Welding Rod
Mechanical Properties of Deposited Metal(AW)
Yield PointReH(Mpa): ≥306
Tensile StrengthRm(Mpa): 400-560
ElongationA4(%): ≥22
Impact Value(J): 20.C, oc: ≥47

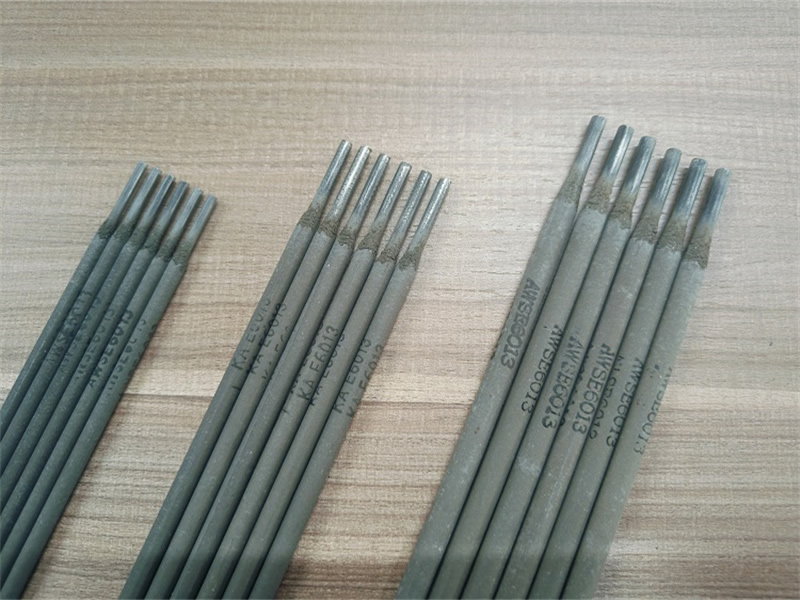

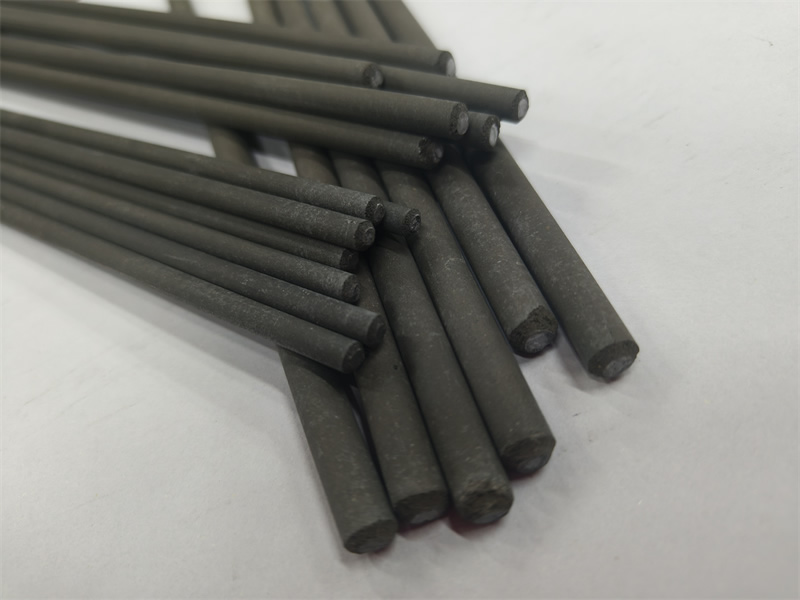

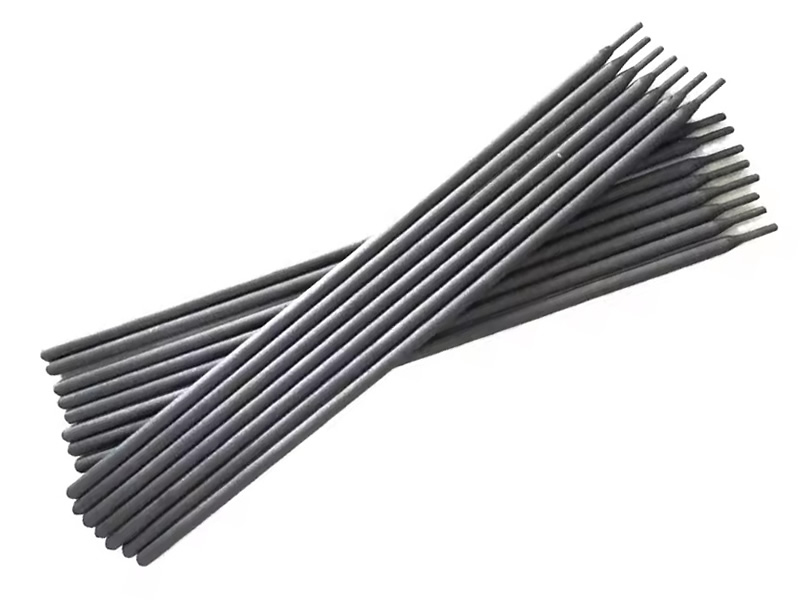

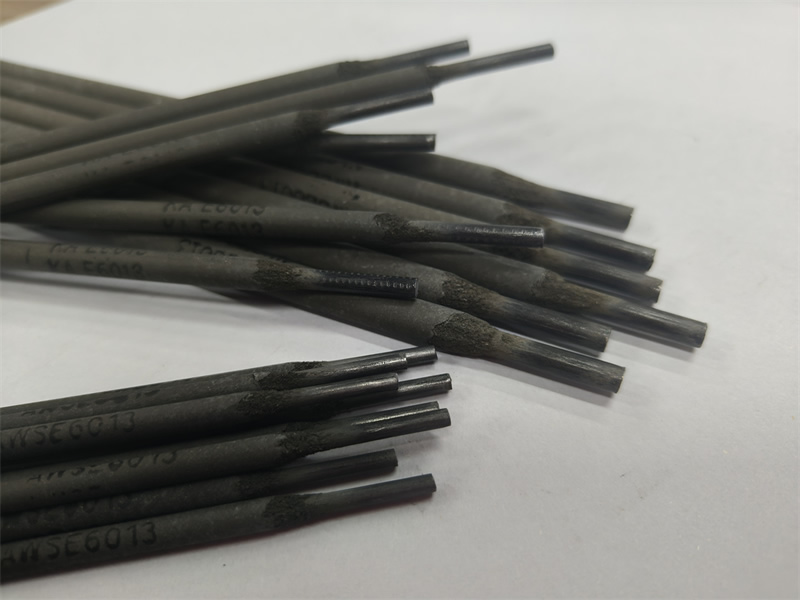

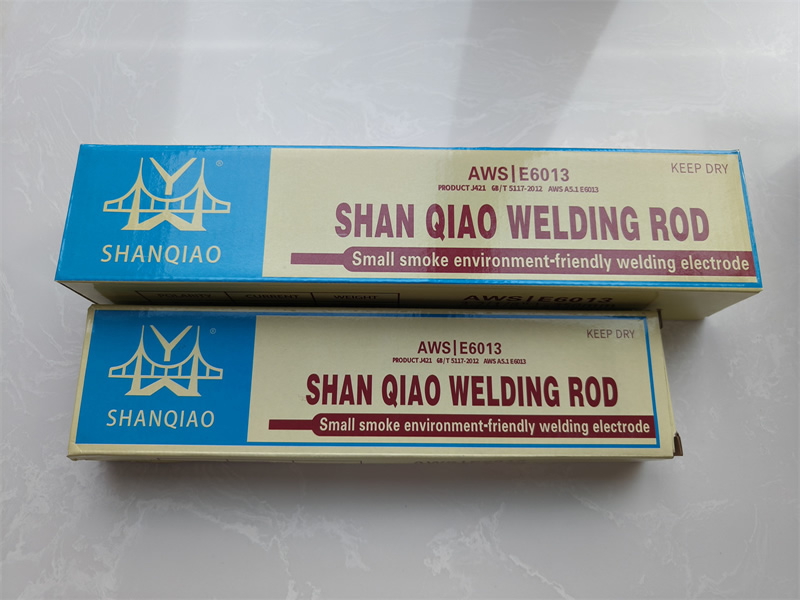

Carbon Steel Welding Electrode / Rod -- E6013
Chemical Composition of Deposited Metal(%)
| C | Mn | Si | S | P | Ni | Cr | Mo | v | |
| Standard | ≤0.20 | ≤1.20 | ≤1.00 | ≤0.035 | ≤0.040 | ≤0.30 | ≤0.20 | ≤0.30 | ≤0.08 |
Mechanical Properties of Deposited Metal(AW)
| Yield PointReH (Mpa) | Tensile Strength Rm (Mpa) | Elongation A4 (%) | Impact Value(J) | ||
| 20.C | oc | ||||
| Standard | ≥306 | 400-560 | ≥22 | - | ≥47 |
X-ray radiographic inspection: Grade ll
Size,Piece & Recommended Current(AC or DC+)
| Size(mm) | 2.0 X 300 | 2.5 X 300 | 2.5 X 350 | 3.2 X 350 | 4.0X400 | 4.0 X450 | 5.0 X400 | 5.0 X450 | |
| Piece(5kg) | ≈481 | ≈303 | ≈258 | ≈157 | ≈90 | ≈80 | ≈59 | ≈52 | |
| Current(A) | F,H | 35-60 | 60-90 | 60-90 | 80-130 | 150-190 | 150-190 | 180-250 | 180-250 |
| VOH | 30-55 | 50-80 | 50-80 | 80-110 | 130-170 | 130-170 | -- | -- | |
