Wires
Razor Wire
Core wire Diameter: Min 2.5 mm
Material of Core wire:Hot Dipped GI (min 275 gsm)
Material of Strip: Hot Dipped GI (min 275 gsm)
Material:Hot Dipped GI (min 275 gsm)
Weight:15.2 ± 5%
Length when stretched:10-12 m
Number of turns / loops:56.
Blade profile: Tear Blade

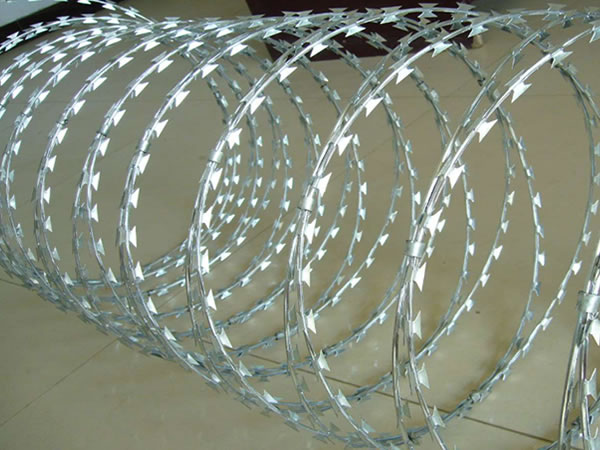

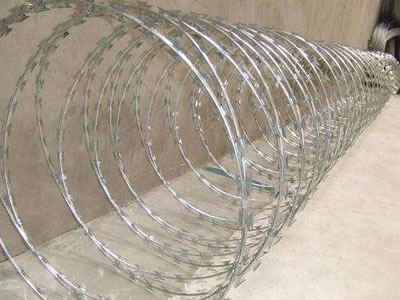

The razor wire is also named concertina wire, blade wire, is a new safety net. Razor wire with beautiful, economical and practical,secure fencing,and construction facilities characteristics, razor wire has been widely used in many countries, industrial and mining enterprises, garden apartments, border posts, the military field, prisons, detention houses, government buildings and other national security facilities.
Razor Wire Types:
> Spiral razor barbed wire
> Straight razor wire
> Flat razor wire
> Razor barbed welding net
Razor Blade Types:
Specification | Wire dia. | Barb (mm) | |||
Thickness | Length | Width | Spacing | ||
BTO-10 | 2.5±0.1 | 0.50±0.05 | 10±1 | 13±1 | 26±1 |
BTO-12 | 2.5±0.1 | 0.50±0.05 | 12±1 | 15±1 | 26±1 |
BTO-18 | 2.5±0.1 | 0.50±0.05 | 18±1 | 15±1 | 33±1 |
BTO-22 | 2.5±0.1 | 0.50±0.05 | 22±1 | 15±1 | 34±1 |
BTO-28 | 2.5 | 0.50±0.05 | 28 | 15 | 45±1 |
BTO-30 | 2.5 | 0.50±0.05 | 30 | 18 | 45±1 |
CBT-60 | 2.5±0.1 | 0.50±0.05 | 60±2 | 32±1 | 100±2 |
CBT-65 | 2.5±0.1 | 0.50±0.05 | 65±2 | 21±1 | 100±2 |
The Best Selling Types-- BTO-22 and CBT-65
1. BTO-22
Wire Dia.: 2.5 mm +/- 0.1
Thickness : 0.5 mm +/- 0.05
Blade length: 22 mm +/- 1
Blade width: 15 mm +/- 1
Blade space: 34 mm+/- 1
2. CBT-65
Wire Dia.: 2.5 mm +/- 0.1
Thickness : 0.5 mm +/- 0.05
Blade length: 65 mm +/- 1
Blade width: 21 mm +/- 1
Blade space : 100 mm+/- 1
Concertina Razor Wire Specification:
Outside diameter: 450mm-960mm
No. of loops: 36 -102 loops
Stander length per coil: 8M-20M (5 clips)
Note: single coil,crossed type
Color:black,red, blue,green,yellow,white,customized
Razor Wire Features:
High safety factor, for the protection of prison and key project.
Razor Wire Application:

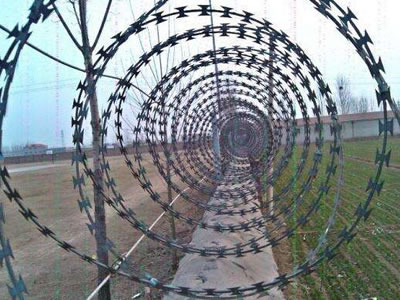

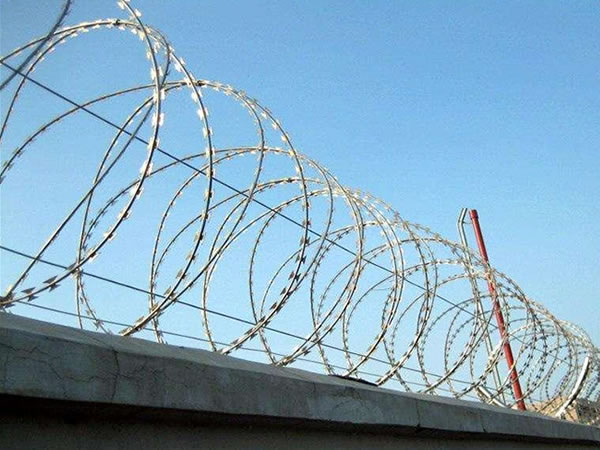

Razor wire can be used in military areas, prisons, government offices, banks, walls and living area, private homes, villa walls, doors and windows, highway, rail fence and border lines for protective security.

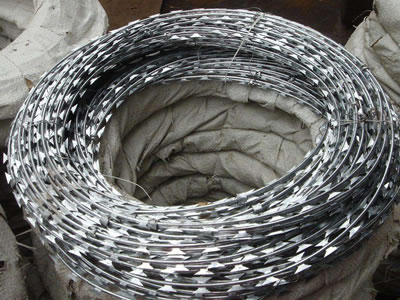

Razor Wire Packing:
> Water proof paper inside and woven bag outside
> Carton
> Customized
