Wires

Barbed Wire

Raw Material: Q195

Surface Treatment:

Application: Residential, agricultural, commercial



Barbed wire is used for various security fencing and barriers. It can be laid directly on the ground, mounted on the top of fence or in rows as an independent barrier. To prevent corrosion, barbed wire is available in galvanized, PVC coated and stainless steel materials.

Barbed wire is regarded as an economical and effective protection measurement in both residential, agricultural, commercial and industrial applications.

Material:Q195

Surface treatment:
Electro galvanized,hot-dipped galvanized,PVC coated.

Tensile Strength:
Soft: 300–650 N/mm2
High tensile: 850–1200 N/mm2


Package
:
Wood pallet, wood box, steel pallet, bulk package, etc.

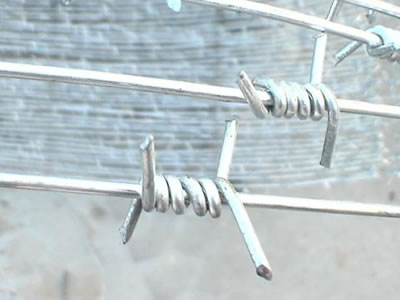

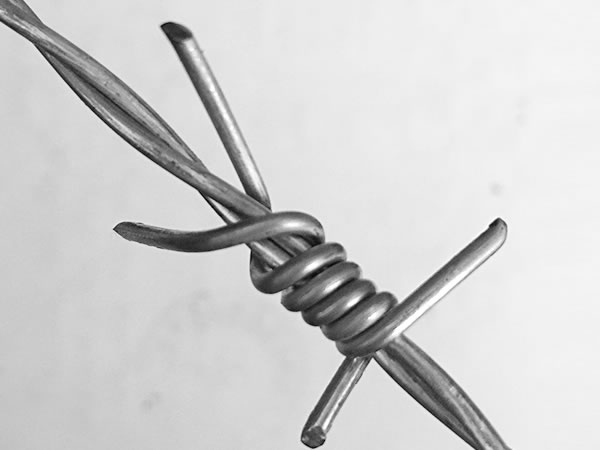

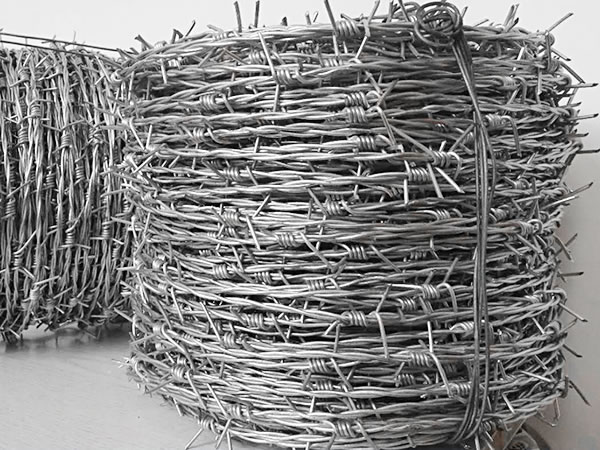

Galvanized barbed wire
Wire Diameter (BWG)Length (m/kg)
Barb Distance 3"Barb Distance 4"Barb Distance 5"Barb Distance 6"
12 × 126.06176.75907.27007.6376
12 × 147.33357.90518.30158.5741
12-1/2 × 12-1/26.92237.71908.30228.7221
12-1/2 × 148.10968.8149.22429.5620
13 × 137.98088.8999.572110.0553
13 × 148.84489.689910.292310.7146
13.5 × 149.607910.613411.470511.8553
14 × 1410.456911.659012.542313.1752
14-1/2 × 14-1/211.987513.367114.378115.1034
15 × 1513.892715.494216.666617.5070
15-1/2 × 15-1/215.349117.114418.408019.3386

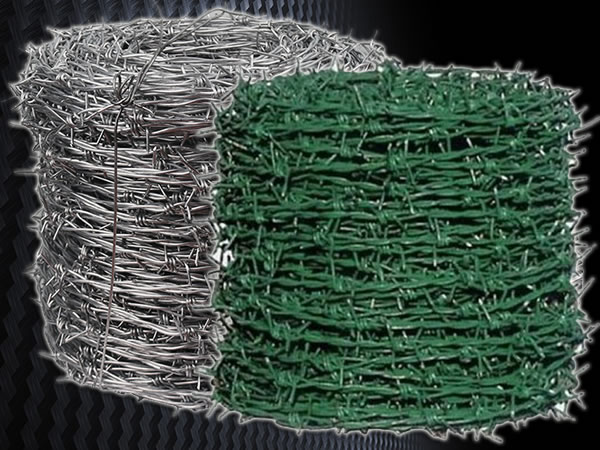

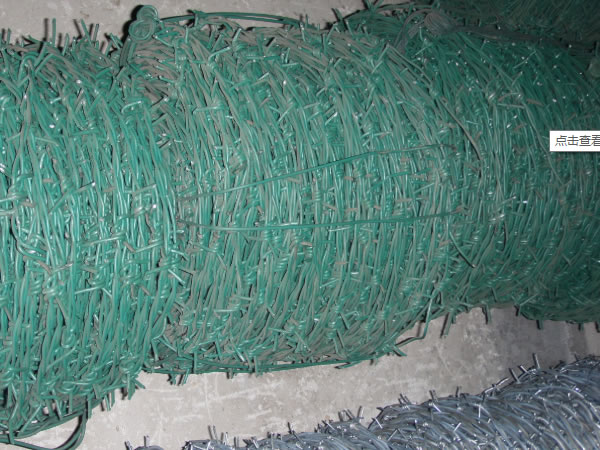

PVC Coated Barbed Wire
Wire DiameterBarbs distanceBarb length
Before coatingAfter coating
1.0–3.5 mm1.4–4.0 mm7.5–15 cm1.5–3 cm
PVC coating thickness: 0.4–0.6 mm; different colors or length are available at customers request
