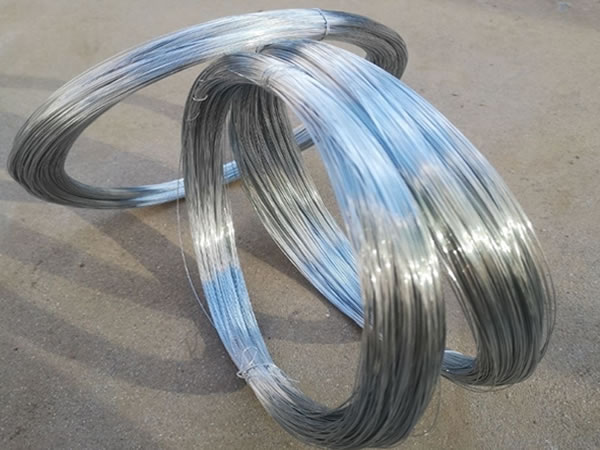

Hot Dipped Galvanized Wire is also written as Hot Dip Galvanised Wire, made of high quality carbon steel wire with heavy zinc plating layer through thermal galvanization. This type of galvanized wire is simplified as HDG wire. Additional polyester coating or fusion bond coating layer can be applied to HDG wire for superior corrosion resistance and multi-color finishes.

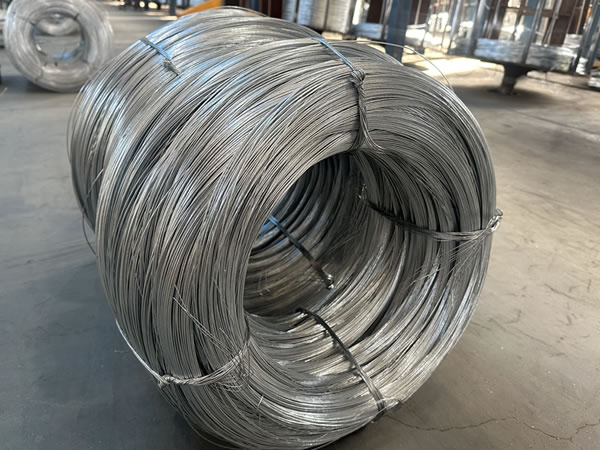

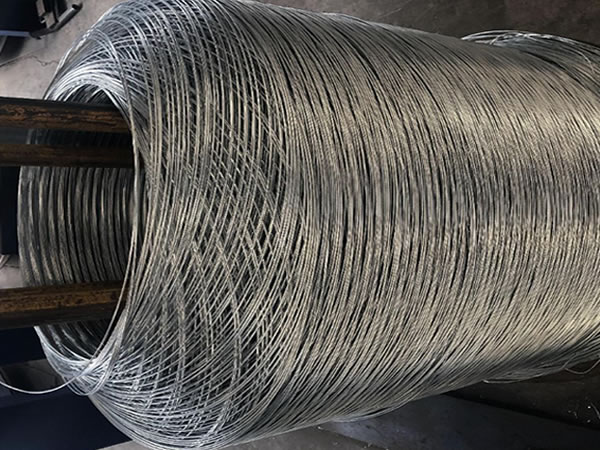

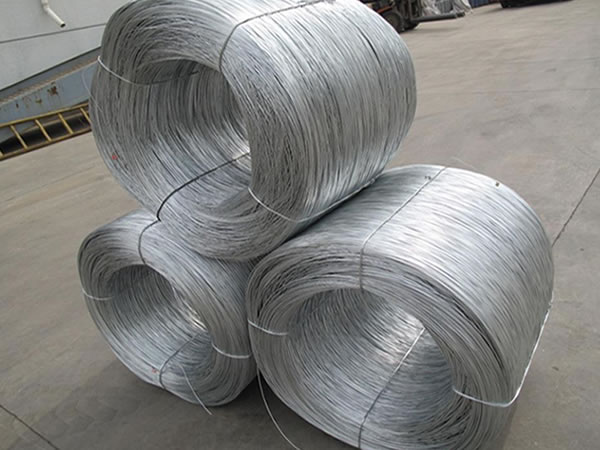

Hot Dipped Galvanzied Wires are supplied in forms of coil wire, spool wire, cut wire or U type wire. Single coil wire can be 10 kg to 1000 kg.
Material: Drawn from wire rod of first quality
Process: Wire drawing, acid washing and rust removing, annealing, zinc plating.
Wire shapes: Round, flat, oval, crimped.
Finishes: Hot dip galvanized; hot dipped zinc coated + pvc / pe coated.
Application: Steel wire with heavy themal zinc plating is used for manufacturer of various fences and meshes, mainly chain link fences, panel fences, woven wire mesh and wire netting system, also cables and other industrial wire products.

OUR CAPABILITIES

We follow international standards below in supplying HDG wires for industrial uses.
DIN 17140
ASTM A 498
BS1442/BS443
EN 10244-1, EN 10244-2, EN 10257-1
Wires meeting specific quality also provided upon requests.

Hot Dipped Galvanised Wire 2.50mm

Zinc Coating : min 60g/m2
Tensile Strength : 35-50kgs/mm2
Roll Weight: 500kgs/roll
Packing: Inner Plastic Film and Outer Woven Bag

Hot Dipped Galvanized Wire 1.9mm

Wire diameter: 1.9mm
Tensile strength: 600-700 N/mm2
Zinc Coating: 70g/m2 actual
Coil Weight: 500 kg net weight
Coil interior diameter: 550mm
Coil exterior diameter: 750mm
Coil Height: 600-650mm
Packaging: big coils (inside clear plastic and outside woven bag) 500 kg coil

Hot Dipped Galvanized Wire 2.4mm

Wire diameter: 2.4mm
Tensile strength: 450-600 N/mm2
Zinc Coating: 70g/m2 actual
Coil Weight: 500 kg net weight
Coil interior diameter: 550mm
Coil exterior diameter: 750mm
Coil Height: 600-650mm
Packaging: big coils (inside clear plastic and outside woven bag) 500 kg coil

Hot Dipped Galvanized Wire 2.2mm

Wire diameter: 2.2mm
Tensile strength: 600-700 N/mm2
Zinc Coating: 70g/m2 actual
Coil Weight: 500 kg net weight
Coil interior diameter: 550mm
Coil exterior diameter: 750mm
Coil Height: 600-650mm
Packaging: big coils (inside clear plastic and outside woven bag) 500 kg coil

Hot Dipped Galvanized Wire 1.4mm

Wire diameter: 1.4mm
Tensile strength: 600-700 N/mm2
Zinc Coating: 30g/m2 actual
Coil Weight: 500 kg net weight
Coil interior diameter: 550mm
Coil exterior diameter: 750mm
Coil Height: 600-650mm
Packaging: big coils (inside clear plastic and outside woven bag) 500 kg coil

Hot Dipped Galvanized Wire 3.0mm

Wire diameter: 3.0mm
Tensile strength: 600-700 N/mm2
Zinc Coating: 70g/m2 actual
Coil Weight: 500 kg net weight
Coil interior diameter: 550mm
Coil exterior diameter: 750mm
Coil Height: 600-650mm
Packaging: big coils (inside clear plastic and outside woven bag) 500 kg coil only

Hot Dipped Galvanized Wire 3.5mm

Wire diameter: 3.5mm
Tensile strength: 600-700 N/mm2
Zinc Coating: 70g/m2 actual
Coil Weight: 500 kg net weight
Coil interior diameter: 550mm
Coil exterior diameter: 750mm
Coil Height: 600-650mm
Packaging: big coils (inside clear plastic and outside woven bag) 500 kg coil

High Tensile Steel Wire, Hot Dip Galvanized, with Min. 280gm/m2 zinc coating

Galvanized HTS Wires:
Wire size 2.5mm diameter
Tolerance 0.02mm
Tensile strength: 1200-1400N
Min. zinc coating: 280gm/m2
Gauge 12.5
Packing: In 650 meters length coils

Hot Dipped Galvanised Wire，min 270 GSM zinc Coated

Sizes for India market:
Diameter in mm: 2.7mm, 3.4mm, 2.2mm
Zinc coating quantity: min. 270 GSM
Smooth finish
Supplied with material test certificate

Soft Hot Dipped Galvanized Wire, 40-50/grm2 Zn Hot Dipped

Size: BWG 6, BWG 8, BWG 14
Tensile strength: soft (650-850N/mm2)
Coating: 40-50/grm2 Zn Hot Dipped
Packing: in Coil 300-500 kg one end
Quality assurance: Mill Test Certificate

Hot Dipped Galvanized Wire, 90g min. zinc coating

Size for Madagascar:
Diameter 1.25mm, 1.60mm
Tensile strength 350-500MPa.
Zn coating 90g/m2 min.

ASTM A 498 Galvanized Wire - High Carbon Steel Galvanized Wire with Thick Zinc Coating Layer

We can produce and supply Carbon Steel Galvanized Wire As Per Astm A 498, in terms of wire diameter tolerance, breaking strength, tensile strength, zinc coating quantity, zinc coating uniformity and adhesion of zinc coating.

Nominal wire diameters we supply range from 1.57mm to 4.72mm.

Material Standard for High Carbon Steel Wire

Scope: Minimum Mass Per Unit Area of Zinc Coating for High carbon steel wire
Classification: Minimum Mass Per Unit Area of Zinc Coating
