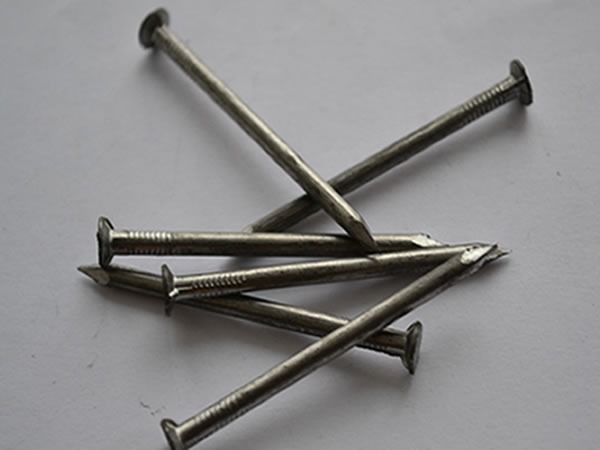

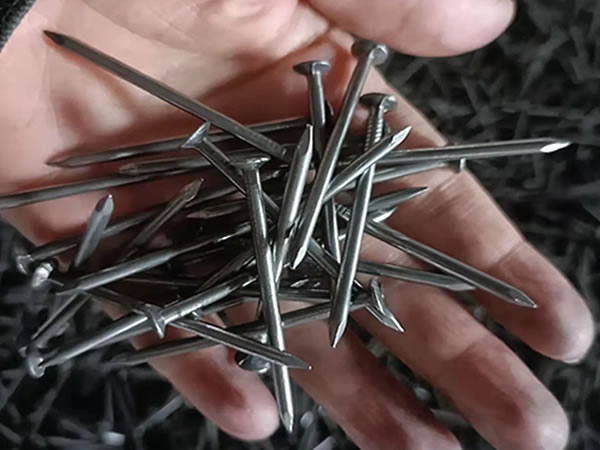

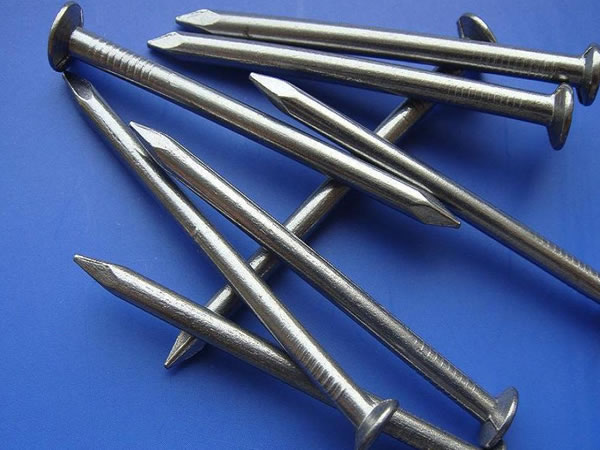

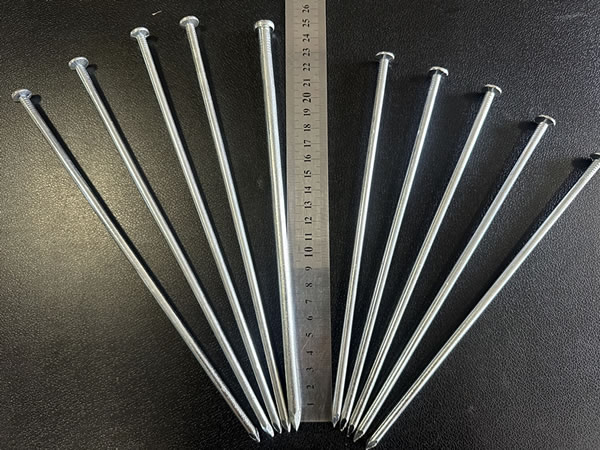

Common nails are used for general construction and framing,also called common wire nails or construction nails, have straight shanks and flat heads.Galvanized coating and larger shank provide greater strength. conform to ASTM F1667.

Specifications of Common nails

Common nail :size: 2.5, 3 and 4 inch,

Material: Q235
Tensile Strength: Not less than 435N/mm2
Finish: Polished
Packing: 5kg/box
200Boxes/pallet

1.5" * BWG14
2.0" * BWG12
2.5" * BWG11
3.0" * BWG08

Common Nail Product Drawing Attachment

Referring to the product drawing, following important notes must be complied;

1.Minimum tensile strength must be 435N/mm2.
2.Dimensions must be complied within the tolerance as indicated in the drawing.
3.Nail head, diameter and length must be consistent.
4.Minimum gross weight must be 5kg/box.
5.The Common Nail must be free from rust and properly covered.

Nails packaging (5 kg)

Inner packaging

1. The carton cannot exceed 0.2kg, the weight of the nails is 4.8kg, and the total weight is 5.0kg
2. Each box of commom nails is packed in plastic mold, and put moisture-proof agent to remove moisture.

Outer packaging

1. Dimensions of the carton (LxWxH) in mm
(220mm x 220mm x 70mm)

Tray size
(1100mm x 900mm x 830mm)

2. Shipping mark design. We will give you the design, the mark needs to be printed on both sides of the carton.

3. 200 boxes per tray (20 boxes per layer, 10 layers in total)

Common Nails packing in 5 kg boxes and 5 boxes in one bigger carton

1.0/16 mm 1.8/30mm
1.2/18 mm 1.8/40mm
1.4/20mm
1.4/25mm
1.4/30mm
1.6/20mm
1.6/25mm
1.6/30mm

Common nails in 10 kg cartons or 25 kg cartons from 2.8/60 mm to 6.0/200 mm

Good quality common wire nails galvanised or non-galvanised polished.of the following specification, for Indian Market.

Nail Kind : Flat, Knurled Head with Diamond tip, Round Common Nails
Nail Material : Low Carbon Steel Polished / Galvanised
Nail Guages: BWG 10, BWG 11 & BWG 12
Nail Lengths: 1/2", 3/4"1", 1-1/2" 2", 3", 4"

Nail Kind: Flat Knurled Head with Diamond Tip Round Common Nails
Nail Material : Low Carbon Steel Galvanised

Nails Sample : Samples Kg 1 Packet (1.33 kg each) for below mentioned sizes & guage.
BWG 10 x 1\' , 2", 3", 4"
BWG 12 x 1", 2", 3", 4"

Common wire polished nails
3 imchx3.5 mm and 4 inch x4 mm in 25 kg heavy duty bulk cartons with heavy duty plastic bag inside carton for seaworthy and no rust.

Common Nail
2" x BWG11 - 20 x 1 Kg packs
2 3/4" x BWG10 - 20 x 1 Kg packs

General Construction Yellow PMS 116

• Bright Common Nails
• Green Vinyl Sinkers and Commons
• Bright Box Nails
• Bright Joist Hanger Nails
• Bright Duplex Nails
• Bright Finish Nails
• Bright Pole barn Nails
• Fluted Masonry
• Cut Masonry
• Bright Spikes
